Hood Chimney

AMORA (CHIMNEY)

Features:

LAYOUT: HOOD (3 ft)
SUCTION ( m3/h ): 1400±50m³/Hr
Auto Clean type: 2nd Generation Autoclean

Technical Specifications:

LAYOUT: HOOD (3 ft)
BODY: MS
SIZE: 90 Cm
Voltage(V): AC220-240V
Rated Motor Power (W): 1 X 200W
Illumination type: LED Lamp
Illumination Power: 2 X max 2W
Auto Clean type: 2nd Generation Autoclean
Autoclean Power(W): 12 W
Total Power(W): 216 W
SUCTION (m3/h): 1400±50m³/Hr
Noise Level(dBA): 46 dB
Speed Control: 3
Switch Control: Touch Control
Outlet Diameter(mm): 160mm
Unit Dimension(mm): L900 x W500 x H600mm


ARC (CHIMNEY)

Features:

LAYOUT: HOOD (3 ft)
SUCTION (m3/h): 1500±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (3 ft)
BODY: MS
SIZE: 91 Cm
Voltage(V): AC220-240V
Rated Motor Power(W):1 X 250W
Illumination type: Incandescent Lamp
Illumination Power: 2 X max 25W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 100 W
Total Power(W): 400 W
SUCTION(m3/h): 1500±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 2
Switch Control: Push Button
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L910 X W560 X H370mm

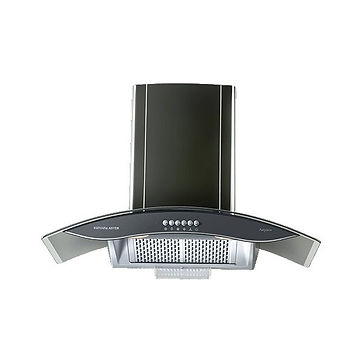

ASTER (CHIMNEY)


Features:

Layout: HOOD (3 ft)
Suction(m3/h): 1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (3ft)
BODY: MS
SIZE: 90 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 200W
Illumination type: Incandencent Lamp
Illumination Power: 2 X max 25W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 100W
Total Power(W):350W
SUCTION(m3/h):1200±50m³/Hr
Noise Level(dBA): 46 dB
Speed Control: 3
Switch Control: Push Button
Outlet Diameter(mm): 160mm
Unit Dimension(mm): L900 X W500 X H600mm

CRESTA (CHIMNEY)


Features:

Layout: SIDE (2 ft)
Suction(m3/h): 1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: SIDE (2 ft)
BODY: MS
SIZE: 60 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 200W
Illumination type: LED Lamp
Illumination Power: 1 X max 3W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 75 W
Total Power(W): 278 W
SUCTION(m3/h): 1200±50m³/Hr
Noise Level(dBA): 58 dB
Speed Control: 3
Switch Control: Touch Control
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L600 X W420 X H900mm

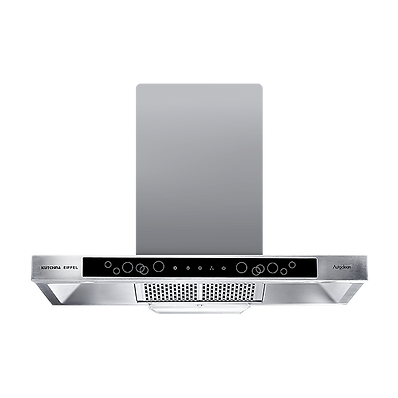

EIFFLE (CHIMNEY)

Features:

Layout: HOOD (3 ft))
Suction(m3/h):1600±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (3 ft)
BODY: SS
SIZE: 90 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 200W
Illumination type: LED
Illumination Power: 2 X max 2W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 100 W
Total Power(W): 304 W
SUCTION(m3/h): 1600±50m³/Hr
Noise Level(dBA): 60 dB
Speed Control: 2
Switch Control: Touch Control
Outlet Diameter(mm): 160 mm
Unit Dimension(mm): L900 X W500 X H600mm


ELITE DLX (CHIMNEY)

Features:

Layout: HOOD (3 ft))
Suction(m3/h): 1400±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (3ft)
BODY: MS
SIZE: 90 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 200W
Illumination type: LED Lamp
Illumination Power: 2 X max 2W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 80 W
Total Power(W): 284 W
SUCTION(m3/h): 1400±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 2
Switch Control: Touch Control
Outlet Diameter(mm): 160 mm
Unit Dimension(mm): L900 X W500 X H600mm

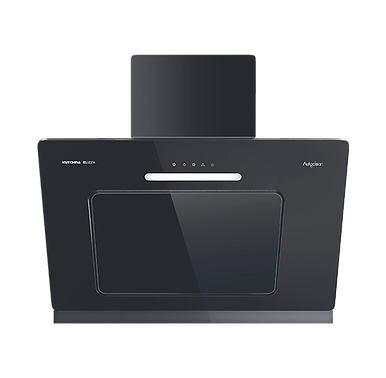

ELIZZA (CHIMNEY)

Features:

Layout: HOOD (3 ft))
Suction(m3/h): 1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: SIDE (3ft)
BODY: MS
SIZE: 90 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 200W
Illumination type: Fluorescent
Illumination Power: 1 X max 8W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 288W
Total Power(W): 284 W
SUCTION(m3/h): 1200±50m³/Hr
Noise Level(dBA): 58 dB
Speed Control: 2
Switch Control: Touch Control
Outlet Diameter(mm): 160 mm
Unit Dimension(mm): L900 X W450 X H870mm


FIEONA (CHIMNEY)

Features:

Layout: HOOD (2 ft))
Suction(m3/h):1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (2ft)
BODY: MS
SIZE: 60 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 250W
Illumination type: LED Lamp
Illumination Power: 2x Max. 1.5W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 75 W
Total Power(W): 328 W
SUCTION(m3/h): 1000±50m³/Hr
Noise Level(dBA): 58 dB
Speed Control: 2
Switch Control: Push Control
Outlet Diameter(mm): 150 mm
Unit Dimension(mm): L600 X W500 X H610mm

FIEONA (CHIMNEY).png

FLORENTINE (CHIMNEY)

Features:

Layout: HOOD (2 ft))
Suction(m3/h): 1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (2ft)
BODY: MS
SIZE: 60 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 200W
Illumination type: Incandescent Lamp
Illumination Power: 2 X max 25W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 80 W
Total Power(W): 330 W
SUCTION(m3/h): 1200±50m³/Hr
Noise Level(dBA): 46 dB
Speed Control: 3
Switch Control: Push Control
Outlet Diameter(mm): 160 mm
Unit Dimension(mm): L598 X W490 X H612mm

FLORENTINE (CHIMNEY).png

GOLDEX (CHIMNEY)

Features:

Layout: HOOD (2 ft)
Suction(m3/h): 1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (2 ft)
BODY: MS
SIZE: 60 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 250W
Illumination type: LED Lamp
Illumination Power: 2x Max. 1.5W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 75 W
Total Power(W): 328 W
SUCTION(m3/h): 1000±50m³/Hr
Noise Level(dBA): 58 dB
Speed Control: 2
Switch Control: Push Button
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L600 X W500 X H610mm

GOLDEX (CHIMNEY).png

ISLE (CHIMNEY)

Features:

Layout: HOOD (3 ft)
Suction(m3/h): 1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (3 ft)
BODY: MS
SIZE: 90 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 250W
Illumination type: LED
Illumination Power: 4 X max 2W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 75 W
Total Power(W): 333 W
SUCTION(m3/h): 1200±50m³/Hr
Noise Level(dBA): 56 Db
Speed Control: 2
Switch Control: Touch Control
Outlet Diameter(mm): 150 mm
Unit Dimension(mm): L900 x W700 x H600mm

ISLE (CHIMNEY).png

SCOTT (CHIMNEY)

Features:

Layout: HOOD (2 ft)
Suction(m3/h): 1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications:

LAYOUT: HOOD (2 ft)
BODY: MS
SIZE: 60 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 1 X 200W
Illumination type: Incandescent Lamp
Illumination Power: 2 X max 15W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 80 W
Total Power(W): 310 W
SUCTION(m3/h): 1000±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 2
Switch Control: Push Button
Outlet Diameter(mm): 160mm
Unit Dimension(mm): L600 X W500 X H550mm

SCOTT (CHIMNEY).png
