STRAIGHT LINE CHIMNEY
FRESHY (CHIMNEY)
Features:
Layout: HOOD (2.5 ft))
Suction(m3/h): 800±50m³/Hr
Auto Clean type: DRY, 3rd Generation
Technical Specifications:
LAYOUT: FLAT (2.5ft)
BODY: MS
SIZE: 71 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 2 X 80W
Illumination type: Incandescent Lamp
Illumination Power: 2 X max 25W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 160 W
Total Power(W): 370 W
SUCTION(m3/h): 800±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 2
Switch Control: Push Control
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L710 X W500 X H100mm
.png)
MERCY (CHIMNEY)
Features:
Layout: FLAT (2 ft)
Suction(m3/h): 700±50m³/Hr
Auto Clean type: DRY, 3rd Generation
Technical Specifications:
LAYOUT: FLAT(2ft)
BODY: MS
SIZE: 60 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 2 x 50 W
Illumination type: Incandescent Lamp
Illumination Power: 1 x max 40W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 100 W
Total Power(W): 240 W
SUCTION(m3/h): 700±50m³/Hr
Noise Level(dBA): 52 dB
Speed Control: 2
Switch Control: Push Button
Outlet Diameter(mm): 150 mm
Unit Dimension(mm): L600 X W500 X H140mm
.png)
SMARTEC (CHIMNEY)
75 cm straight line chimney comes with glossy finish black MS body, 1150 m3/hr suction capacity & power saving LED lamps. The model is equipped with dry auto-clean technology having auto-clean indicator.
Features:
Layout: FLAT (2.5 ft)
Suction(m3/h): 1150±50m³/Hr
Auto Clean type: DRY, 3rd Generation
Technical Specifications:
LAYOUT:FLAT (2.5 ft)
BODY: MS
SIZE: 76 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 2 X 70W
Illumination type: LED Lamp
Illumination Power: 2 X max 2W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 160 W
Total Power(W): 304 W
SUCTION(m3/h): 1150±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 3
Switch Control: Push Button
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L760 x W560 x H180mm
.png)

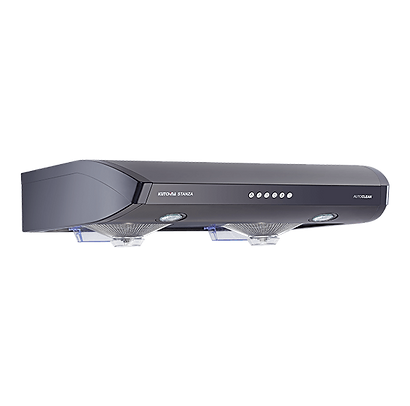

STANZA (CHIMNEY)
Features:
Layout: HOOD (2.5 ft))
Suction(m3/h): 1150±50m³/Hr
Auto Clean type: DRY, 3rd Generation
Technical Specifications:
LAYOUT: FLAT (2.5ft)
BODY: MS
SIZE: 76 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 2 X 70W
Illumination type: Incandescent Lamp
Illumination Power: 2 X max 20W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 160 W
Total Power(W): 340 W
SUCTION(m3/h): 1150±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 3
Switch Control: Push Control
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L760 X W530 X H145mm
.png)

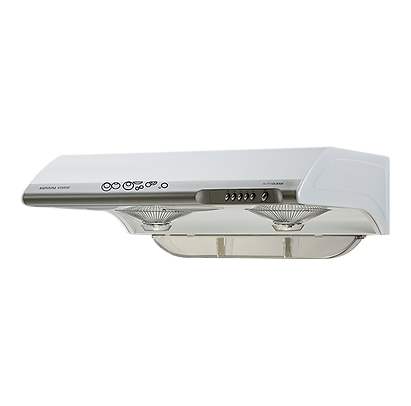

VOGUE (CHIMNEY)
Features:
Layout: FLAT (2.5 ft)
Suction(m3/h): 1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation
Technical Specifications:
LAYOUT: FLAT (2.5 ft)
BODY: MS
SIZE: 76 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 2 X 60W
Illumination type: Incandescent Lamp
Illumination Power: 1 x max 40W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 160 W
Total Power(W):320 W
SUCTION(m3/h): 1000±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 3
Switch Control: Push Button
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L760 X W560 X H200mm

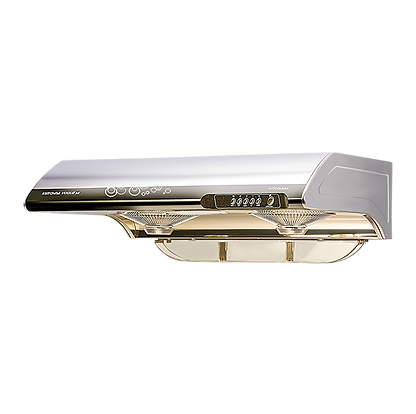

VOGUE SS (CHIMNEY)
Features:
Layout: FLAT (2.5 ft)
Suction(m3/h): 1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation
Technical Specifications:
LAYOUT: FLAT (2.5 ft)
BODY: MS
SIZE: 76 Cm
Voltage(V): AC220-240V
Rated Motor Power(W): 2 X 60W
Illumination type: Incandescent Lamp
Illumination Power: 1 x max 40W
Auto Clean type: DRY, 3rd Generation
Autoclean Power(W): 160 W
Total Power(W): 320 W
SUCTION(m3/h): 1000±50m³/Hr
Noise Level(dBA): 56 dB
Speed Control: 3
Switch Control: Push Button
Outlet Diameter(mm): 150mm
Unit Dimension(mm): L760 X W560 X H200mm
